DETERMINATION OF ALPRAZOLAM AND FLUOXETINE HCl FROM SPIKED RAT PLASMA USING HPTLC WITH UV DETECTION

ASHA B. THOMAS*, ASHISH NAPHADE, SNEHAL S. KARANJKHELE

Department of Pharmaceutical Chemistry, Pad. Dr. D. Y. Patil Institute of Pharmaceutical Sciences and Research, Pimpri, Pune, MS, India
Email: dypharmachem@yahoo.co.in

Received: 19 Nov 2015 Revised and Accepted: 25 Jan 2016

ABSTRACT

Objective: The main aim of this study was to develop a rapid, simple and selective validated high-performance thin-layer chromatographic (HPTLC) method with UV detection for the estimation of alprazolam and fluoxetine HCl from spiked rat plasma.

Methods: In this method, a mixture of acetonitrile and chloroform (2:4 v/v) was employed as the solvent for extraction of alprazolam and fluoxetine HCl from spiked rat plasma samples with good sample recovery. The separation was achieved on a 20 cm x10 cm TLC plate precoated with silica gel 60F254, the 250µm thickness on aluminium sheets employing a mobile phase consisting of ethyl acetate: toluene: methanol: ammonia (4:3:1:0.1v/v/v/v). The densitometric evaluation was performed at 230 nm. The developed method was validated as per the recommendations of USFDA Guidance for Industry: Bioanalytical Method Validation.

Results: The Rf value were observed at 0.48±0.04 and 0.17±0.02 for alprazolam and fluoxetine HCl respectively. The calibration curves were linear in the range of 40-100 ng/µl for both drugs with regression coefficients (r2) of 0.9910 and 0.9932 for alprazolam and fluoxetine HCl respectively. In the intraday and interday precision study, the % CV was less than 15. Results of recovery studies prove the extraction efficiency of the proposed method. Stability data indicated that both alprazolam and fluoxetine HCl were stable in plasma after three freeze-thaw cycles and upon storage at -20 °C for 1 w.

Conclusion: In the proposed method, the rapid, single step extraction of drugs from plasma samples coupled with the simple HPTLC-UV chromatographic conditions makes the method cost effective and suitable for analysis of a large number of binary samples of alprazolam and fluoxetine HCl in plasma.

Keywords: Alprazolam, Fluoxetine HCl, Bioanalytical method, Liquid-liquid extraction, HPTLC, Spiked rat plasma

© 2016 The Authors. Published by Innovare Academic Sciences Pvt Ltd. This is an open access article under the CC BY license (http://creativecommons.org/licenses/by/4.0/)

INTRODUCTION

Alprazolam (fig. 1), chemically known as 8-Chloro-1-methyl-6-phenyl-4H [1, 2, 4] triazole [4, 3a] [1, 4]-benzodiazepine, is a synthetic, short-acting anxiolytic of the benzodiazepine class and used to treat anxiety disorders, panic attacks and anxiety caused by depression. It acts by binding to specific sites on the GABAA receptor, hence possesses anxiolytic, sedative, hypnotic, skeletal muscle relaxant, anticonvulsant and amnestic properties.

Fluoxetine HCl (fig. 1) is (±)-N methyl-3-phenyl-3-[(a, a, a-trifluoro-p tolyl) oxy] propylamine hydrochloride, a selective serotonin reuptake inhibitor (SSRI) antidepressant. It is used to treat major depression (including paediatric depression), obsessive-compulsive disorder (in both adult and paediatric populations), bulimia nervosa (an eating disorder), anorexia nervosa, panic disorder, premenstrual dysphoric disorder (PMDD) and Parkinson’s disease [1].

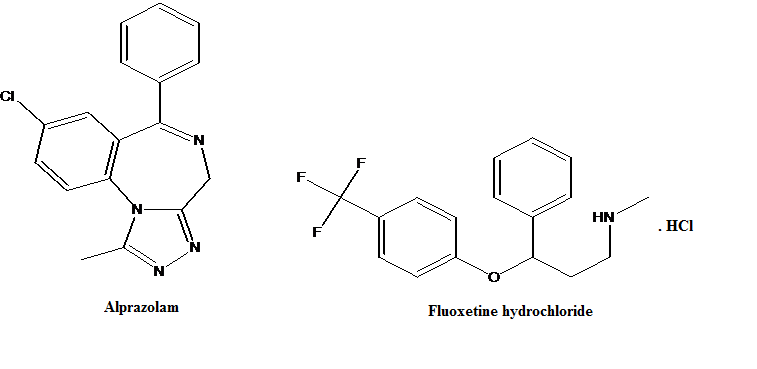

Fig.1:Chemical structures of Alprazolam and Fluoxetine HCl

Combined administration of alprazolam and fluoxetine HCl resulted in an approximate 30% increase in alprazolam plasma concentration relative to plasma concentration following the administration of alprazolam alone. Also psychomotor decrements increased when fluoxetine was administered with alprazolam relative to administration of alprazolam alone.

Several methods are reported for the estimation of alprazolam employing HPLC-UV, LC-MS/MS, and GC-MS individually and in combination with other drugs [2-4]. Literature survey also reveals different methods like LC-MS/MS, RP-HPLC with fluorescence detection and pre-column derivitisation for UV-sensitivity enhancement for estimation of fluoxetine HCl individually and in combination with other drugs [5-8]. Few HPTLC methods are also reported for estimation of alprazolam and fluoxetine HCl individually and in combination with other drugs [9-12]. Also, a single HPLC and HPTLC method is reported for the simultaneous estimation of alprazolam and fluoxetine HCl in tablet formulation [13]. However, no HPTLC method has been reported so far for the simultaneous estimation of alprazolam and fluoxetine HCl in plasma.

Therefore, it was thought desirable to develop a simple, accurate, cheap and fast procedure that could be applied for the simultaneous determination of alprazolam and fluoxetine in plasma with protein precipitation and liquid-liquid extraction as the only sample preparation step involved prior to HPTLC analysis.

MATERIALS AND METHODS

Chemicals and reagents

Active pharmaceutical ingredient (API), working standards of alprazolam and fluoxetine HCl, were obtained from Aarti Drugs Pvt Ltd., India. Ethyl acetate, toluene, methanol, ammonia AR grade ammonia grade were obtained from Fisher Scientific, India and Himedia Lab Pvt. Ltd, India. TLC plates precoated with silica gel 60F254 with 250µm thickness on aluminium sheets were purchased from Merck India Pvt. Ltd., India. Rat plasma used for the research work was obtained from albino wistar rats purchased from National Toxicology Centre, Pune, India.

Instrument

Camag TLC plates with precoated silica gel plate 60F254 (20 x 10 cm), 250 µm thickness (E. Merck, Darmstadt, Germany) was used as stationary phase. The sample application was done by Camag 100 µl syringe using Camag Linomat 5 applicator. The sample was sprayed in the form of narrow bands of 6 mm length at a constant rate 0.2µl/s. Linear ascending development was carried out in 20 x 10 cm twin trough glass chamber (Camag, Muttenz, Switzerland). The densitometric scanning was performed using Camag TLC scanner 3 supported by win CATS software (Version 1.4.3.6336 Camag). Evaluation of chromatograms was done by using peak areas.

Methods

Preparation of Stock solution, Calibration standards (CS) and quality control (QC) samples

A stock solution of concentration 1000 µg/ml each of alprazolam and fluoxetine HCl were prepared in methanol.  In 10 ml centrifuge tubes, 1.0 ml of stock solution of alprazolam and fluoxetine HCl (1000ug/ml each) were added with 1.0 ml drug-free plasma. The samples were incubated at RT (28 °C) for 2 h. Protein precipitation and extraction was carried out using acetonitrile (2 ml) and chloroform (4 ml) with vigorous vortex shaking for 2 min and centrifuged at 5000 rpm for 10 min. The organic phase was recovered and evaporated to dryness at RT. The residual mass was reconstituted with 10 ml methanol. Calibration standards (40-100 ng/µl each) were prepared. Lastly, the quality control samples at three different concentration levels; Lower Limit of Quantitation LLOQ: 40 ng/µl; Low QC sample: 50 ng/µl; Middle QC sample: 70 ng/µl; High QC sample: 100 ng/µl of both alprazolam and fluoxetine HCl respectively were prepared from the reconstituted solutions. A fixed volume (1µl) of the prepared standards were applied on TLC plates and developed under the optimized HPTLC conditions.

Plasma sample preparation

Fresh blood samples were withdrawn through the retro-orbital route of rats and collected in Eppendorf tubes previously rinsed with sodium citrate solution as an anti-coagulant. The blood samples were centrifuged at 5000 rpm for 15 min for separation of plasma. The separated plasma was employed for the study. Different solvents were tried for the extraction of alprazolam and fluoxetine HCl from plasma. Initially n-hexane, n-butanol were tried, but the sample recovery was very low. When chloroform (4 ml) was used, recovery was significantly improved. Acetonitrile was also added to increase the precipitation of plasma proteins. Finally, a mixture of acetonitrile and chloroform (2:4 v/v) was employed as the final solvent for extraction of alprazolam and fluoxetine HCl with good sample recovery.

HPTLC chromatographic conditions

Merck TLC plates coated with silica gel 60 F254 (0.25 mm thickness) on aluminium sheets were used as stationary phase. The mobile phase consisting of a mixture of ethyl acetate: toluene: methanol: ammonia (4:3:1:0.1, v/v/v/v) was used throughout the analysis. Plates were pre-washed using methanol as solvent and activated at 120 °C for 30 min in hot air oven. Chamber saturation time was optimized at 20 min and plate development time was fixed at 10 min with migration distance of 8 cm. Slit dimension was constant at 5.0 x 0.45 mm with a scan speed of 20 mm/s. From the overlain spectra of alprazolam and fluoxetine HCl, 230 nm was selected as the scanning wavelength for densitometric evaluation [14].

Method validation

The developed method was validated as per the recommendations of USFDA Guidance for Industry: Bioanalytical Method Validation [15-16]. Selectivity was studied at the Lower Limit of Quantification (LLOQ) of 40ng/µl by comparing the blank responses of plasma from six different sources with the peak areas afforded by the LLOQ samples.

Accuracy and precision were studied by analyzing five replicates of the Lower Quality Control (LQC), Middle-Quality Control (MQC) and Higher Quality Control (HQC) samples. The concentration of alprazolam and fluoxetine HCl in the QC samples was determined by referring to the area ratio of the drug to standard drug dilution, obtained from the QC samples, the calibration equation generated on the same day. The accuracy was estimated as the mean % BIAS while the precision was measured in terms of % CV.The recovery of the extraction procedure was calculated by comparing the peak areas of the processed QC samples to those of corresponding standard dilutions.

Stability was evaluated under various conditions viz. three freeze-thaw cycles, stability at room temperature for 6 h and long-term stability at -20 °C for one week. For the determination of freeze-thaw stability, five replicates of LQC and HQC samples were frozen at -20 °C for a minimum of 24 h and then allowed to thaw unassisted at room temperature. For short-term room temperature stability, five replicates of LQC and HQC samples were kept at room temperature for 6 h. Long term stability at -20 °C for one week was determined by using five replicates of LQC and HQC. The precision and accuracy of stability samples was found, and the % CV and % BIAS were calculated [16-17].

RESULTS AND DISCUSSION

Different mobile phase systems like ethyl acetate: toluene: methanol, ethyl acetate: toluene: methanol: glacial acetic acid, toluene: methanol: ammonia were tried in order to determine the best conditions for the effective separation of alprazolam and fluoxetine HCl. The mobile phase consisting of ethyl acetate: toluene: methanol: ammonia (4:3:1:0.1 v/v/v/v) was selected as it gave high resolution with compact spots at Rf value 0.48±0.04 and 0.17±0.02 for alprazolam and fluoxetine HCl respectively. Also from the overlain spectra, it was observed that both alprazolam and fluoxetine HCl exhibited fairly good absorbance at about 230 nm which was selected as the analytical wavelength for densitometric analysis.

Method validation

Linearity

Linearity was established by analysing seven concentrations of alprazolam and fluoxetine HCl, both in the concentration range of 40-100 ng/µl respectively, and then plotting the peak areas against the corresponding concentrations (table 1).


Table 1: Assay parameters and regression characteristic of the binary mixture determined by the proposed method

Parameters

Alprazolam

Fluoxetine HCl

Wavelength (nm)

230

230

Rf

0.48±0.04

0.17±0.02

Concentration range

40-100 ng/µl

40-100 ng/µl

Intercept(a)

215.757

31.242

Saa

1.169

0.785

Slope(b)

10.916

5.329

Sbb

1.110

0.888

RSD% of slope

10.172

16.673

r2

0.9910

0.9932

Regression equation: A= a+bc, where A is the absorbance, a is the intercept, b is the slope and c is the concentration.

Linearity of the calibration curves were validated by the high value of the regression coefficients (r>0.99).

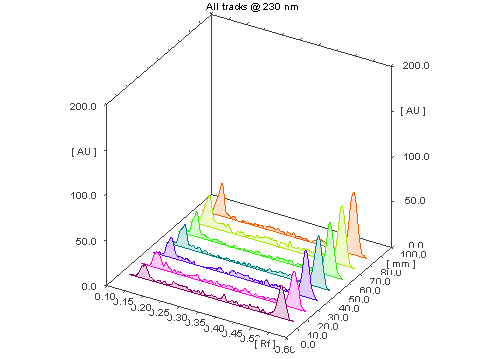

Fig.2: 3D chromatogram of calibration standards (40-100 ng/µl) for each drug detected at 230 nm

The calibration range for the proposed method was established based on the reported pharmacokinetic data available in literature and the concentrations present in pharmaceutical products. Fig. 2 represents the 3D chromatogram for each concentration detected at 230 nm.

Selectivity

The selectivity of the method was investigated by analyzing blank rat plasma. The blank plasma sample was checked for its interference using the proposed liquid-liquid extraction procedure under the optimized HPTLC conditions and compared with a spiked sample concentration of alprazolam and fluoxetine HCl at LLOQ (40ng/µl) in rat plasma. There was no interference of the components of the biological matrix (plasma) in quantitation of both the drugs.

Sensitivity

During the validation studies, it was found that the peak areas for the LLOQ samples were more than five times the blank responses obtained using six different plasma sources, as shown in table 2.


Table 2: Sensitivity data for ALP and FLU at LLOQ

S. No.

Nominal conc. (ng/µl)

Alprazolam

Fluoxetine HCl

1

34.8

36.8

2

41.2

36.3

3

36.5

32.8

4

37.0

39.0

5

35.7

41.6

Avg.

36.92

37.30

SD

2.5645

3.2741

% CV

6.94

8.77

% Bias

6.57

6.45

This proves that the method is selective at the LLOQ of 40ng/µl. The representative densitogram of blank plasma shows no interference at the Rf values of both drugs (fig. 3). The representative densitogram of alprazolam and fluoxetine HCl extracted from plasma at LLOQ is shown in fig. 4.

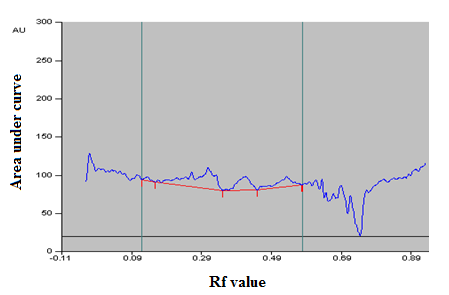

Fig.3: Densitogram of blank rat plasma

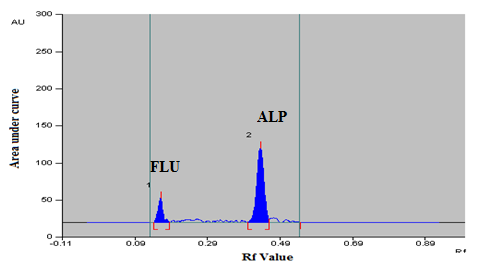

Fig.4: Typical densitogram of QC sample at LLOQ (40ng/µl)

The lower limit of quantitation was found to be 36ng/and 37ng/µl for alprazolam and fluoxetine HCl respectively. The %CV was found to be 6.94% for alprazolam and 8.77% for fluoxetine HCl, % bias was found to be 6.57% and 6.45% for alprazolam and fluoxetine HCl respectively, and is within the acceptable limits.

Precision and accuracy

The evaluation of accuracy and precision showed that the % CV and % bias was less than ±15 as required by the USFDA Guidance guidelines. Precision of the method was determined by repeatability (intraday) and intermediate precision (inter-day)studies and accuracy for set of quality control (QC) samples at 40, 50, 70, 100 ng/µl (LLOQ, LQC, MQC, HQC) in replicate (n = 5) (table 3). The coefficient of variance (%CV) and percent bias (%BIAS) were within the acceptable limits. The % BIAS was calculated using the formula:-

Recovery

The recovery data was determined in triplicate at two concentrations (LQC and HQC) as recommended by FDA guidelines. The recovery at these two concentrations, 50 and 100 ng/µl was found to be 87.10%, 94.42% for alprazolam and 87.42%, 93.29% for fluoxetine HCl (table 3). The % recovery was calculated using following formula:-

Stability study

From the stability studies, it was observed that the % CV and % RSD was less than 15, as shown in table 4, which falls within the acceptable limits. This indicates that the deviation of the results from nominal concentration may be attributed to the variability of the assay and implies that the drugs are stable after the stability cycles.


Table 3:Assessment of the accuracy, precision and % recovery of Alprazolam and Fluoxetine HCl

Level

Alprazolam

Fluoxetine HCl

LLOQ

LQC

MQC

HQC

LLOQ

LQC

MQC

HQC

Conc.

40

50

70

100

40

50

70

100

Intra

day

Mean conc.* (ng/band)

35.66

44.76

65.56

95.36

37.30

44.56

62.7

94.65

% CV

2.16

2.03

2.67

1.99

8.77

3.99

3.32

3.40

% Bias

11.00

10.48

6.42

4.40

6.45

11.2

10.4

5.35

Inter

day

Mean conc.* (ng/band)

37.08

45.9

66.14

95.66

36.92

45.64

65.26

96.28

% CV

3.35

4.38

1.95

1.62

6.94

4.48

3.35

3.64

% Bias

7.42

8.20

5.51

4.34

6.57

8.72

6.77

3.72

% Recovery*

-

87.10

-

94.42

-

87.42

-

93.29

*n = 5


Table 4: Results of stability studies for alprazolam and fluoxetine HCl

Stability study

Alprazolam

Fluoxetine HCl

*LQC

*HQC

*LQC

*HQC

Short term stability

% CV

1.48

3.97

2.76

2.01

% Bias

8.86

3.18

10.28

2.82

Freeze thaw stability

% CV

1.27

1.12

2.37

1.65

% Bias

12.9

2.24

9.48

4.16

Long term stability

% CV

4.30

1.76

1.45

1.01

% Bias

9.84

1.24

9.20

2.82

*n = 5


The results of the study indicated that the proposed HPTLC-UV method has a high degree of sensitivity, selectivity with an acceptable degree of accuracy and precision. As there are no reported methods for the simultaneous estimation of these two drugs in biological fluids, the developed method can prove to be suitable for such applications.

CONCLUSION

The present work presents a simple, rapid, sensitive and economical method for determination of alprazolam and fluoxetine HCl in rat plasma. A good separation of the analytes in this combination was achieved by using the mobile phase containing ethyl acetate: toluene: methanol: ammonia (4:3:1:0.1 v/v/v/v). The method utilizes protein precipitation with liquid-liquid extraction using a mixture of acetonitrile and chloroform as the only sample preparation step prior to HPTLC analysis. The rapid, single step, sample preparation coupled with the simple HPTLC-UV chromatographic conditions makes the method cost effective and suitable for analysis of a large number of plasma samples containing the drugs. The method was fully validated to meet the requirements for linearity, sensitivity, accuracy and precision as per US FDA guidelines. The method can be suitably employed for the bioavailability and bioequivalence study of alprazolam and fluoxetine HCl.

ACKNOWLEDGMENT

The authors are thankful to the Principal, Pad. Dr. D. Y. Patil, Institute of Pharmaceutical Sciences and Research, Pimpri, Pune for providing the necessary facilities to carry out this work and Aarti Drugs Pvt. Ltd. for providing gift samples of Alprazolam and Fluoxetine HCl, respectively.

CONFLICT OF INTERESTS

Declare none

REFERENCES

  1. National Formulary of India. 4th edition. Indian Pharmacopoeia Commission, Ministry of Health and Family Welfare, Government of India; 2011.
  2. Bibirel N, Tantaru G, Apostu M, Agoroaei L, Vieriu M, Panainte AD, et al. A new bioanalytical method for the determination of alprazolam in human plasma. Rev Chim (Bucharest Rom) 2013;64:587-92.
  3. Yilmaz B, Akba V. Determination of alprazolam in rabbit plasma by GC-MS method. Int J Pharm Sci Res 2010;1:11-7.
  4. Sultana N, Arayne MS, Ali S. An ultra-sensitive LC method for simultaneous determination of rosuvastatin, alprazolam and diclofenac sodium in API, pharmaceutical formulations and human serum by programming the detector. J Anal Bioanal Technol 2012;3:1-6.
  5. Bonde S, Bhadane R, Gaikwad A, Gavali S, Katale D, Narendiran A. Simultaneous determination of olnazapine and fluoxetine in human plasma by LC-MS/MS: its pharmacokinetic application. J Pharm Biomed Anal 2014;90:64-71.
  6. Kumbhar S, Ingale K, Choudhari P, Bhatia M. Simultaneous estimation of fluoxetine and norfluoxetine in plasma by RP-HPLC employing pre-column derivatization for UV-sensitivity enhancement. J Bioequivalence Bioavailability 2012;14:1-7.
  7. Vlase L, Imre S, Leucuta S. Determination of fluoxetine and its N-desmethyl metabolite in human plasma by high-performance liquid chromatography. Talanta 2005;66:659-63.
  8. Defreitas D, Porto C, Vieira E, Desiqueira M. Three-phase, liquid-phase microextraction combined with high-performance liquid chromatography-fluorescence detection for the simultaneous determination of fluoxetine and norfluoxetine in human plasma. J Pharm Biomed Anal 2010;51:170-7.
  9. Venkateswarlu K, Venisetty R, Yellu N, Keshetty S, Pai M. Development of HPTLC-UV absorbtion densitometry method for analysis of alprazolam and sertraline combination and its application in the evaluation of marketed preparations. J Chromatogr Sci 2007;45:537-9.
  10. Jagadeeswaran M, Mahibalan S, Gopal N. Estimation of fluoxetine in capsule dosage form by HPTLC method. Int J Pharm Sci 2009;1:71-3.
  11. Wankhede S, Chitlange S. A novel HPTLC method for simultaneous determination of alprazolam and methylparaben in tablet dosage form. Der Pharm Lett 2013;5:89-93.
  12. Bhatia M, Kumbhar S. Development and validation of a HPTLC method for the estimation of fluoxetine and its N-demethylated metabolite (norfluoxetine). World J Pharm Sci 2013;2:3748-58.
  13. Patel R, Patel M, Shankar M, Bhatt K. Simultaneous estimation of alprazolam and fluoxetine hydrochloride in tablet formulation by high-performance liquid chromatography and high-performance thin layer chromatography. J AOAC Int 2009;92:1-7.
  14. Rote A, Kumbhoje P. Development and validation of HPTLC method for simultaneous estimation of gatifloxacin and ornidazole in human plasma. J Chromatogr Sep Technol 2011;2:115.
  15. CDER. Guidance for Industry, Bioanalytical Method Validation, U. S. Department of Health and Human Services, Food and Drug Administration Centre for Drug Evaluation and Research(CDER), Centre for Veterinary Medicine (CVM); 2001.
  16. EMA. Guideline on Bioanalytical Method Validation; Committee for Medicinal Products for Human Use, European Medicines Agency; 2011.
